MS Black &
Galvanised ERW Pipes
High-strength ERW pipes for water transmission, structural, industrial and agricultural applications
Overview

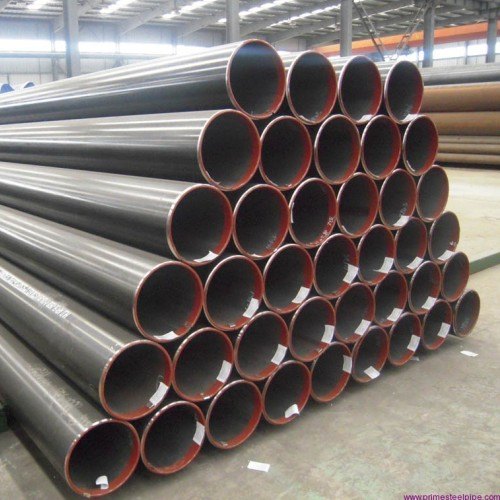

MS Black and Galvanised ERW Pipes are high-strength steel pipes manufactured using advanced Electric Resistance Welding (ERW) technology. These pipes are designed for durability, dimensional accuracy, and reliable performance across water transmission, structural, industrial and agricultural applications.
Galvanised ERW pipes offer enhanced corrosion resistance through zinc coating, making them suitable for long-term exposure to moisture and external environments.
Manufacturing Process
ERW Pipes are manufactured from high-quality Hot Rolled (HR) coils through a precision-controlled process:
Steel strips are cold-formed into a cylindrical shape.
The longitudinal edges are heated using High Frequency current.
Edges are pressure welded to form a continuous welded tube.
Weld seam is heat-treated and normalized for strength.
Pipes undergo sizing, straightening, and finishing operations.
For Galvanised Pipes:
Black ERW pipes are processed through a controlled hot-dip galvanizing line.
Pipes are immersed in molten zinc, forming a uniform metallurgical bond.
Zinc coating provides corrosion protection and extended service life.
Advanced Manufacturing & Quality Control
Our ERW pipes are produced with:
This ensures reliability in both structural and fluid transmission applications.
Standards & Specifications
Pipes are manufactured in compliance with:
IS 1239 (Part 1) – Black & Galvanised Pipes
IS 1161 – Structural Tubes
IS 3589 – Water & Sewage Pipes
IS 4270 – Water Wells
IS 9295 – Conveyor & Roller Systems
IS 3601 – General Purpose
ASTM A53
Size Range
Nominal Bore:
15 mm (½") to 500 mm (20")
Available in multiple wall thicknesses as per applicable IS and ASTM standards.
Applications
Infrastructure & Utilities
- Plumbing Systems & Piping
- Underground & Building Drainage Systems
- Water Supply Pipelines
- Gas Distribution Pipelines
- Firefighting Systems
- STP, WTP & ETP Projects
Industrial & Engineering
- HVAC Systems & Piping
- Cold Storage & Industrial Piping
- Structural Applications
- Conveyor & Roller Systems
- General Engineering Fabrication
Agricultural & Irrigation
- Integrated Irrigation Solutions
- Agriculture & Borewell Piping
Utility & Fluid Handling
- Water, Gas & Air Piping Systems
- Sewage & Effluent Lines
